The Universal SC-50 subcarrier receiver will provide full-featured autio subcarrier services, music, sports, talk shows, news, religious programming, major radio stations, variety, public radio plus many other services - and with no subscriber's fees.

The SC-50 audio subcarrier receiver will work with all C-Band and Ku-Band home satellite systems and only takes three minutes to install. It is simple and quick to tune, has a 16-character display with direct frequency readout, and a 50-channel memory bank for storing your favorite radio services for immediate recall. The SC-50 covers all FM(2) and audio subcarrier channels from 100 kHz to 9 MHz, an area filled with hundreds of free channels and programming. No need to change your IRD satellite receiver to tune in all of the audio subcarrier and FM(2) services.

	SC-50 Features
	Tune by Frequency for Service Selection Selectable Wide/Narrow Bandwidth 50-Channel Memory Bank (Non-volatile) Channel Frequency on 16-Character Display Center Tuned Automatic Tuning Indicators C and Ku Bands with 950-1450 MHz System Easy to Use, Simple to Install Does Not Affect Video Reception Service Name on Display - LCD Digital AFC - Locks Signal - Tracks LNB Drift +/- 200 KHz 6-Button Key Pad for Fast and Easy Tuning Digital Frequency Lock-On (DFL) Stable Phase Lock Loop System Line Output for Hi-Fi System and 8 Ohm Speaker Frequency Lock-On of Signal and Capture Feature No Subscriber's Fees - Over 500 Free Services
	SC-50 Information

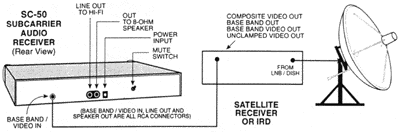

Easy 3-Minute Hookup
The Universal SC-50 Audio Subcarrier Receiver is very simple to install and hook up. Find the Subcarier or Baseband OUT (sometimes called the Composite Video or Unclamped Video Out) on the rear of your satellite receiver or IRD. Run a cable from the receiver to the Subcarrier or Baseband IN on the back of the SC-50. Run another cable from the SC-50's LINE OUT to the AUX IN on your Hi-Fi System. If you are using a stereo, simply use a "Y" connector to the stereo's Left and Right IN connectors.

More About Subcarriers and FM(2) (FM Squared)
Audio subcarriers are the additional signals attached to the main satellite video carrier, but are not the video program audio. These signals are located above the video from 5.0 MHz to 9.0 MHz typically. Hundreds of audio services are available. Music, news, talk shows and sports are all offered by this audio subcarrier group.

FM(2) (FM Squared), or "audio subcarriers below video," is another group of subcariers located from 100 KHz to 5 MHz, the video section of the standard video signal. FM(2) audio subcarriers on these "non-video" transponders are too low in frequency to be tuned by the standard IRD or stereo processor. FM(2) audio subcarriers also provide numerous music, news, talk and sports services. All of these services are FREE!

	What you can receive on the SC-50
	(Now hear all of the great programming you have been missing - no charges!)
	Focus on the Family SMN Music In Touch Radio Salem Radio Network WJSO-FM Country & Western Music Talk Shows USA Radio Network Religious Programming Golden Oldies Jazz Classical Muzak® News Services Ethnic Music Services Sports Radio Network ARIES Reading Service XETRA-A Sports Talk Radio WLIR-AM Jewish Variety Programming American Entertainment Network RAI Radio Deutsche Welle Arts C-Span Service Christian Rock Weather Channel Trinity Broadcasting CNN Radio Network BBC Radio Canada National Black Radio Network ESPN Big Bands Super Nochs WGN Chicago Radio Sonora Chuck Harder and much more! over 500 audio services free! Current Satellite Radio Guide Included

Why Do I Need The Versatile SC-50 Receiver? ...To Receive 400 More Audio Channels!
Your satellite receiver will receive some of the standard audio subcarriers, mainly 6.20 MHz and 6.80 MHz which carry the audio for your video. However if you want to receive the many other audio channels, you must reprogram your receiver's audio esction to receive them. Later, when you want to restore your video's audio, you must reprogram the receiver over again. All of this is a time consuming and often difficult procedure. In addition, many satellite receivers cannot be tuned to any of the new audio subcarrier channels at all!

The Universal SC-50 ends the hassle; you simply punch in your frequency numbers-3 seconds, that's it! Better yet, store your favorite channels in the 50 section memory bank for instant recall. Easily scroll through the channels with a touch of the up or down button!

The SC-50 opens a new world of audio for your satellite system bringing you the FM(2) audio channels located from 100KHz to 5.0MHz (a lot of interesting channels here) and the new channels in the 5.0MHz to 9.0MHz range.

	SC-50 Specifications
	Muting System: Switch On / Off Dynamic Range Expansion Automatic Bandwidth, Narrow or Wide Selectable Deviation Comparitor Automatic Memory Bank 50 Channel - Non-Volatile Memory Tuning Steps 10KHz/.01KHz Tuning Frequency Range 100KHz to 9.0MHz, Continuous LCD Display 16 Char., Full Information IF Frequency 10.7MHz S/N +/- 50dB THD +/- 1% Frequency Response +/- 1dB 50Hz - 14KHz Frequency Response +/- 3dB 25Hz - 15KHz De-emphasis 75 microseconds Power Supply 120V, 60Hz or 12VDC Dimensions 1.75" (H) x 8" (D) x 12" (W) Weight 8 lbs.
Manufactured in the U.S.A. By Universal Electronics, Inc.
